通信

6. 通信链

之前的sam防空导弹平台是配备雷达传感器的，检测到目标后发动打击，而真实场景中，雷达是一个单独的探测器，需要将探测到的目标trace传递给其他平台做处理，因此就需要通信链路

# File generated by Wizard 2.9.0 on May 3, 2025.
include_once platforms/common.txt
include_once weapons/sam/large_sam.txt
include_once processors/single_large_sam_tactices.txt

platform_type SINGLE_LARGE_SAM WSF_PLATFORM

   icon TWIN_BOX
   category ENGAGEMENT

   infrared_signature VEHICLE_INFRARED_SIGNATURE
   optical_signature  VEHICLE_OPTICAL_SIGNATURE
   radar_signature    VEHICLE_RADAR_SIGNATURE

   track_manager
      filter FILTER_TACTICS end_filter
   end_track_manager

   comm cmdr_net WSF_COMM_TRANSCEIVER
      network_name sam_comm_net
      internal_link data_mgr
   end_comm

   zone full_kinematic
      circular
         maximum_altitude 30 km
         maximum_radius   25 nm
   end_zone

   weapon sam LARGE_SAM
      quantity 160
   end_weapon

   processor data_mgr WSF_TRACK_PROCESSOR
      purge_interval 60 seconds
   end_processor

   processor task_mgr SINGLE_LARGE_SAM_TACTICS
   end_processor


end_platform_type

这是新的SAM平台，没有配备传感器、只有武器；

  • comm 定义了个WSF_COMM_TRANSCEIVER 收发器， 里面定义了个通信网络sam_comm_net和轨迹处理器data_mgr
# File generated by Wizard 2.9.0 on May 3, 2025.
include_once sensors/radar/acq_radar.txt

platform_type ACQ_RADAR_PLATFORM WSF_PLATFORM

   icon TWIN_BOX
   category ENGAGEMENT

   infrared_signature VEHICLE_INFRARED_SIGNATURE
   optical_signature  VEHICLE_OPTICAL_SIGNATURE
   radar_signature    VEHICLE_RADAR_SIGNATURE

   track_manager
      filter FILTER_TACTICS end_filter
   end_track_manager

   comm cmdr_net2 WSF_COMM_TRANSCEIVER
      network_name sam_comm_net
   end_comm

   zone full_kinematic
      circular
         maximum_altitude 30 km
         maximum_radius   25 nm
   end_zone

   sensor acq ACQ_RADAR
      on
      internal_link data_mgr
   end_sensor

   processor data_mgr WSF_TRACK_PROCESSOR
      purge_interval 60 seconds
      external_link platform sam_1 comm cmdr_net via cmdr_net2
   end_processor

end_platform_type

这是单独得传感器脚本，配备了ACQ_RADAR传感器，然后通过internal_link将数据发送给data_mgr

  • data_mgr中对搜索到的轨迹做了处理，传给了外部平台sam_1的cmdr_net网络，利用自身的cmdr_net2网络

就这样实现了雷达传感器检测目标trace，然后传递给sam，sam收到后进行打击

6.1 网络

通信中会在各个平台间建立网络，
例如WSF_COMM_NETWORK_AD_HOC无线自组网：当往网络中增加设备时候，会定期验证其和其他网络设备的可达性，基于可达性来建立和断开网络，来模拟大量实体的网络的动态变化情况

本节实现一个无人机网络，然后定义一个总的指挥平台，每次只有无人机群中只有一个实体与指挥平台通信，将整个无人机网络情况传递给指挥平台；整个无人机群检测敌方轰炸机，之间通过网络传递trace，最终给leader；

首先定义指挥平台

# File generated by Wizard 2.9.0 on May 27, 2025.
platform_type BLACK_VAN WSF_PLATFORM

   icon semi

   comm van_comm WSF_COMM_TRANSCEIVER
      network_name van_net
      internal_link bogey_book
   end_comm

   processor bogey_book WSF_TRACK_PROCESSOR
      on_message
         type WSF_TRACK_MESSAGE
            script
               writeln(PLATFORM.Name(), " RECEIVES TRACK AT TIME:" , TIME_NOW);
            end_script
      end_on_message
   end_processor

end_platform_type
  • van_comm 表示通信链路，连接到一个叫van_net得链路，同时还有个bogey_book内部处理器
  • 整体其监听作用，只要有收到消息，就会print内容
# File generated by Wizard 2.9.0 on May 27, 2025.
include_once comms/ad_hoc_comm.txt

platform_type UAV_DETECTOR WSF_PLATFORM

   category ad_hoc
   icon predator

   comm ad_hoc AD_HOC
   end_comm

   add router default DEFAULT end_router

   add mover WSF_AIR_MOVER
   end_mover

   add sensor sense WSF_GEOMETRIC_SENSOR
      on
      maximum_range 50 km
      frame_time 10 s
      reports_location
      ignore ad_hoc
      internal_link tracker
   end_sensor

   add processor tracker WSF_TRACK_PROCESSOR
      external_link platform black_van comm van_comm via ad_hoc
   end_processor

   route
      label start offset 0 5 km speed 200 km/h
      offset -5 0 km
      offset 0 -5 km
      offset 5 0 km
      goto start
   end_route

   on_initialize
      double latitude = -21;
      double longitude = 132;
      double altitude = 2000;
      double heading = 0;

      latitude = latitude + RANDOM.Uniform(-1, 1);
      longitude = longitude + RANDOM.Uniform(-1, 1);
      altitude = altitude + RANDOM.Uniform(-2000, 2000);
      heading = RANDOM.Uniform(0, 359);

      PLATFORM.SetLocation(latitude, longitude, altitude);
      PLATFORM.SetHeading(heading);
   end_on_initialize

end_platform_type

这是无人机平台的定义；

  • comm一个通信链路AD_HOC 命名为ad_hoc，
  • router 使用默认路由，有了网络，消息传递还需要实际路由
  • sensor 还有传感器，要来探测敌方目标，一旦检测道，就会传递给black_van，就是之前的指挥平台得van_comm链路，通过自己形成的ad_hoc通信网络。一个无人机检测到，消息就会在形成的网络中层层传递，最终到达指挥平台

最后是无人机组成的通信网络的实现，AD_HOC

# File generated by Wizard 2.9.0 on May 27, 2025.
network ad_hoc WSF_COMM_NETWORK_AD_HOC
   update_rate normal mean 5.0 s sigma 0.25 s
end_network

comm AD_HOC WSF_RADIO_TRANSCEIVER
   network_name ad_hoc
   transmitter
      frequency 100 mhz
      power 50 mw
      maximum_range 100 km
   end_transmitter

   receiver
      frequency 100 mhz
   end_receiver

end_comm


script_variables
   WsfDraw draw = WsfDraw();
end_script_variables

script void DrawConnection(WsfAddress aSourceAddress, WsfAddress aDestinationAddress)

   WsfPlatform sourcePlat = WsfComm.GetComm(aSourceAddress).Platform();
   WsfPlatform destinationPlat = WsfComm.GetComm(aDestinationAddress).Platform();

   draw.SetId(aSourceAddress.GetAddress() + aDestinationAddress.GetAddress());
   draw.SetLineStyle("dotted");

   draw.BeginLines();
      draw.SetDuration(Math.DOUBLE_MAX());
      draw.SetLineSize(2);
      draw.SetColor(1.0, 1.0, 1.0);
      draw.Vertex(sourcePlat);
      draw.Vertex(destinationPlat);
   draw.End();

end_script

script void EraseDrawConnection(WsfAddress aSourceAddress, WsfAddress aDestionationAddress)
   draw.Erase(aSourceAddress.GetAddress()+aDestionationAddress.GetAddress());
end_script

script void DrawRouting(WsfAddress aSourceAddress, WsfAddress aDestinationAddress)

   WsfPlatform sourcePlat = WsfComm.GetComm(aSourceAddress).Platform();
   WsfPlatform destinationPlat= WsfComm.GetComm(aDestinationAddress).Platform();

   draw.SetLineStyle("solid");
   draw.BeginLines();
      draw.SetDuration(2.0);
      draw.SetLineSize(4.0);
      draw.SetColor(1.0, 0.0, 0.0);
      draw.Vertex(sourcePlat);
      draw.Vertex(destinationPlat);
   draw.End();
end_script

router_protocol AD_HOC WSF_COMM_ROUTER_PROTOCOL_AD_HOC

   script bool OnCommAdded(WsfAddress aAddress, WsfCommGraph aGraph, WsfCommRouter aRouter)
      return true;
   end_script

   script bool OnCommRemoved(WsfAddress aAddress, WsfCommGraph aGraph, WsfCommRouter aRouter)
      return true;
   end_script

   script bool OnConnectionAdded(WsfAddress aSourceAddress, WsfAddress aDestinationAddress, WsfCommGraph aGraph, WsfCommRouter aRouter)
      DrawConnection(aSourceAddress, aDestinationAddress);
      return true;
   end_script

   script bool OnConnectionRemoved(WsfAddress aSourceAddress, WsfAddress aDestinationAddress, WsfCommGraph aGraph, WsfCommRouter aRouter)
      EraseDrawConnection(aSourceAddress, aDestinationAddress);
      return true;
   end_script

   script WsfAddress OnMessageRouting(WsfCommMessage aMessage, WsfAddress aAddress, WsfCommGraph aGraph, WsfCommRouter aRouter)

      Array<WsfCommGraphEdge> edges = aGraph.GetOutgoingNodeEdges(aAddress);
      WsfComm destinationComm = WsfComm.GetComm(aMessage.GetSourceMessage().Destination());
      WsfGeoPoint destLoc = destinationComm.Platform().Location();
      WsfAddress hop = {};
      double totalDistance = MATH.DOUBLE_MAX();
      Array<WsfAddress> traceRoute = aMessage.GetTraceRoute();
      foreach(WsfCommGraphEdge edge in edges)
      {
         if(edge.DestinationAddress().GetAddress() == aAddress.GetAddress())
         {
            continue;
         }

         foreach(WsfAddress visited in traceRoute)
         {
            if(visited.GetAddress() == edge.DestinationAddress().GetAddress())
            {
               continue;
            }
         }

         WsfComm potentialComm = WsfComm.GetComm(edge.DestinationAddress());
         double distance = destLoc.GroundRangeTo(potentialComm.Platform().Location());
         if(distance < totalDistance)
         {
            totalDistance = distance;
            hop = edge.DestinationAddress();
         }
      }

      if(!hop.IsNull())
      {
         DrawRouting(aAddress, hop);
      }

      return hop;

   end_script

end_router_protocol





router DEFAULT WSF_COMM_ROUTER
   add router_protocol ad_hoc AD_HOC end_router_protocol
   use_default_protocol false
   hop_limit 10
end_router
  • network 定义一个无线自组网，每5s更新一次
  • AD_HOC 表示通信设备 ，有工作频率，发射功率，理论最大通信距离
  • router_protocol 这是定义的路由协议，每次选择最近的无人机作为消息传递得下一跳

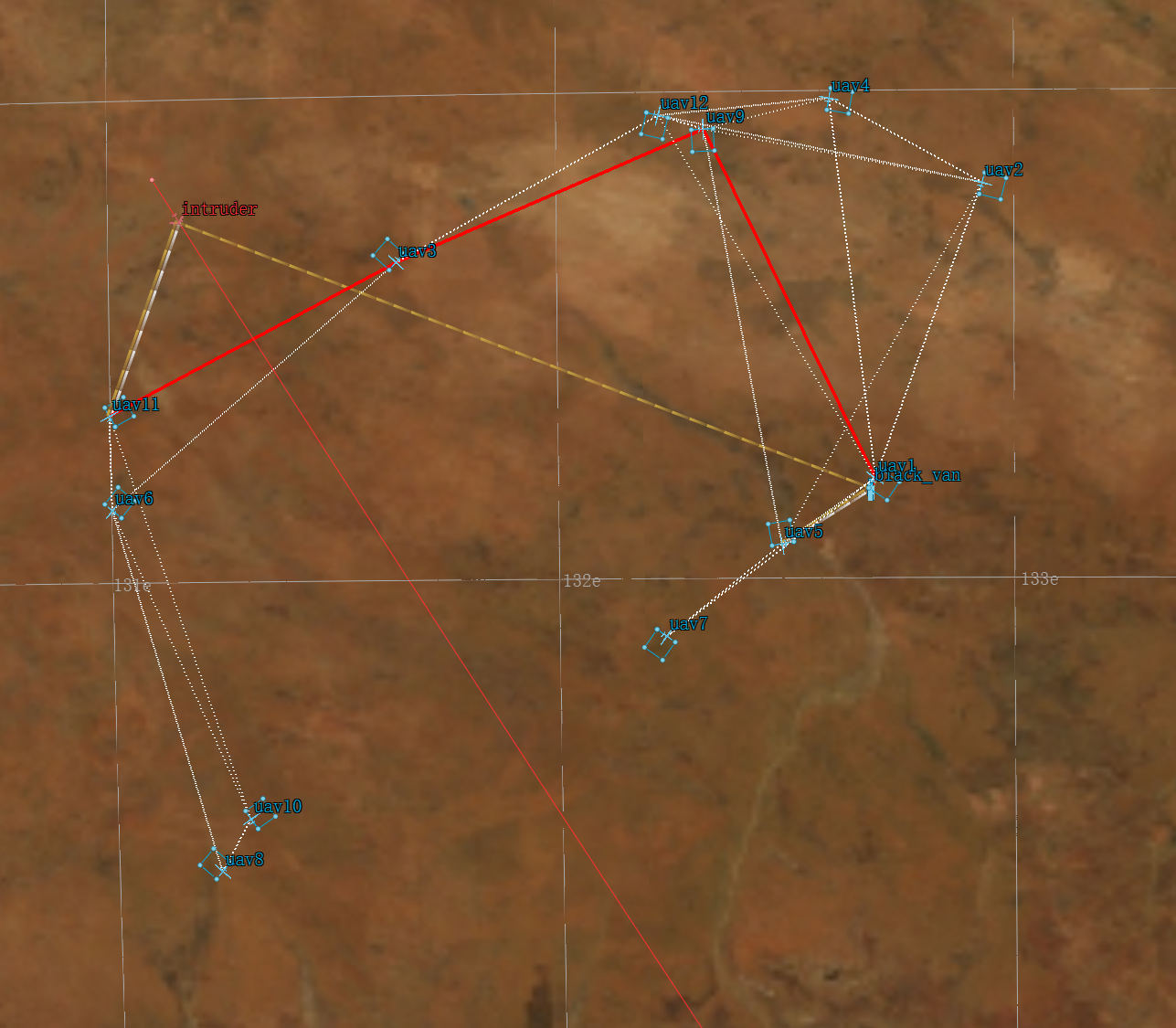

最终效果就是，轰炸机正常航行，一旦被一个无人机传感器探测到，就会把消息通过通信网络，根据指定的路由协议，选择一条路径，传递给离指挥平台最近的无人机，将该路径用红色标注，然后最后的无人机和指挥平台进行通信。

再做进一步优化，指挥平台收到轰炸机消息后，传递给己方sam导弹连，对敌方轰炸机实现打击。使用通信分组实现连队。

group sam_group WSF_GROUP
end_group

platform sam1 SINGLE_LARGE_SAM_MEMBER
   side blue
   edit comm van_comm group_join sam_group end_comm
end_platform

platform sam2 SINGLE_LARGE_SAM_MEMBER
   side blue
   edit comm van_comm group_join sam_group end_comm
end_platform

platform sam3 SINGLE_LARGE_SAM_MEMBER
   side blue
   edit comm van_comm group_join sam_group end_comm
end_platform

platform sam4 SINGLE_LARGE_SAM_MEMBER
   side blue
   edit comm van_comm group_join sam_group end_comm
end_platform

这是实例化的SAM导弹连

  • group 创建一个组
  • 将平台的通信设备van_comm加入到组内，就说明这些平台同属于一个组，也就实现了sam连。
platform_type BLACK_VAN WSF_PLATFORM

   icon semi

   comm van_comm WSF_COMM_TRANSCEIVER
      network_name van_net
      internal_link bogey_book
   end_comm

   processor bogey_book WSF_TRACK_PROCESSOR
      report_to_group sam_group via van_comm
   end_processor

end_platform_type

再更新指挥平台，当van_comm收到消息后，不在打印消息，而是将消息report给sam导弹连，最后在实现打击；

6.2 指挥链

先通信，在process处理时候，区分指挥官和下属得消息传递。本质还是消息传递。
指挥链不能代替通信链，只有在通信设备建设完整下，指挥链才能进行消息传递。

platform_type UAV_DETECTOR WSF_PLATFORM

   category ad_hoc
   icon predator

   command_chain UAV_CHAIN black_van

   comm ad_hoc AD_HOC
   end_comm

   add router default DEFAULT end_router

   add mover WSF_AIR_MOVER
   end_mover

   add sensor sense WSF_GEOMETRIC_SENSOR
      on
      maximum_range 50 km
      frame_time 10 s
      reports_location
      ignore ad_hoc
      ignore_same_side
      internal_link tracker
   end_sensor

   add processor tracker WSF_TRACK_PROCESSOR
      #external_link platform black_van comm van_comm via ad_hoc
      report_to command_chain UAV_CHAIN commander via ad_hoc to van_comm
   end_processor
  • command_chain 定义指挥链UAV_CHAIN，表示无人机层，指挥官是black_van，也就是之前的指挥平台
  • 最后消息处理processor中，利用report_to将消息传递给指挥链UAV_CHAIN得commander（指挥官），通过建立的ad_hoc通信链，发给van_comm设备（指挥官平台的通信设备）
platform_type BLACK_VAN WSF_PLATFORM

   icon semi

   comm van_comm WSF_COMM_TRANSCEIVER
      network_name van_net
      internal_link bogey_book
   end_comm

   processor bogey_book WSF_TRACK_PROCESSOR
      #report_to_group sam_group via van_comm
      report_to command_chain SAM_CHAIN subordinates via van_comm
   end_processor

end_platform_type

指挥平台得van_comm收到消息后，会将消息传递给SAM_CHAIN链，相当于通信，之后sam收到会自行打击。
